Hardman® DOUBLE/BUBBLE® epoxies are strong and versatile. They contain no solvents, will not shrink, and cure at room temperature. Epoxies are effective over a wide range of temperatures for bonding to metal, glass, ceramics, wood, concrete and most hard plastics. They are cost-efficient adhesives and do not include galvanic corrosion.
Extra fast setting for patching, fixturing and other repairs requiring quick handling strength. Bonds to metal, wood, concrete, ceramics and many plastics.
Extra fast setting for patching, fixturing and other repairs requiring quick handling strength. Bonds to metal, wood, concrete, ceramics and many plastics.
Unit of Measure
Specifications
|
Typical Working Properties
|
Typical Cured Physical Properties
|
Typical Uses
|
Packaging
|
How to Use
|
Storage and Handling
|
Safety
|
Features
|
Additional Information
|
Note
Specifications
Metal Substrates |
N/A Aluminum Carbon Steel Stainless Steel |
Material Bonds to |
N/A Ceramics Concrete Metal Plastics Wood |
Plastic Substrates |
N/A Epoxy |
Other Substrates |
N/A China Glass Leather Stone Wood |
Reorder Number |
N/A 04001 |
Color |
N/A Amber |
Typical Working Properties
Part A Viscosity at 25 Degree Celsius (ºC) Temperature |
N/A 55,000 cP |
Part B Viscosity at 25 Degree Celsius (ºC) Temperature |
N/A 10,000 cP |
Mixed Viscosity at 25 Degree Celsius (ºC) Temperature |
N/A 40,000 cP |
Part A Weight Per Gallon |
N/A 10 lb |
Part B Weight Per Gallon |
N/A 9.4 lb |
Mixed Weight Per Gallon |
N/A 9.7 lb |
Part A Specific Gravity at 25 Degree Celsius (ºC) Temperature |
N/A 1.2 |
Part B Specific Gravity at 25 Degree Celsius (ºC) Temperature |
N/A 1.13 |
Mixed Specific Gravity at 25 Degree Celsius (ºC) Temperature |
N/A 1.16 |
Part A Flash Point, PMCC (Pensky-Martens Closed Cup) |
N/A 157 ºC |
Part B Flash Point, PMCC (Pensky-Martens Closed Cup) |
N/A 132 ºC |
Work Time |
N/A 3 minutes |
Handling Strength |
N/A 15 to 30 minutes |
Part A Shelf Life |
N/A 24 months |
Part B Shelf Life |
N/A 24 months |
Typical Cured Physical Properties
Hardness, Shore D Test |
N/A 80 |
Maximum Service Temperature Test |
N/A 82 ºC180 ºF |
Lap Shear Strength Cure Schedule at 25 Degree Celsius (ºC) Temperature |
N/A 15 minutes30 minutes60 minutes |
Lap Shear Strength Cure Schedule at 25 Degree Celsius (ºC) Temperature and 15 Minutes |
N/A 150 psi |
Lap Shear Strength Cure Schedule at 25 Degree Celsius (ºC) Temperature and 30 Minutes |
N/A 1,000 psi |
Lap Shear Strength Cure Schedule at 25 Degree Celsius (ºC) Temperature and 60 Minutes |
N/A 1,500 psi |
Lap Shear Strength Test Temperature |
N/A 149 ºC25 ºC38 ºC-40 ºC66 ºC82 ºC93 ºC |
Lap Shear Strength Test Temperature at -40 Degree Celsius (ºC) Temperature |
N/A 1,695 psi |
Lap Shear Strength Test Temperature at 25 Degree Celsius (ºC) Temperature |
N/A 3,000 psi |
Lap Shear Strength Test Temperature at 38 Degree Celsius (ºC) Temperature |
N/A 2,400 psi |
Lap Shear Strength Test Temperature at 66 Degree Celsius (ºC) Temperature |
N/A 1,100 psi |
Lap Shear Strength Test Temperature at 82 Degree Celsius (ºC) Temperature |
N/A 655 psi |
Lap Shear Strength Test Temperature at 93 Degree Celsius (ºC) Temperature |
N/A 300 psi |
Lap Shear Strength Test Temperature at 149 Degree Celsius (ºC) Temperature |
N/A 245 psi |
T-Peel Strength Test Temperature |
N/A -40 ºC25 ºC82 ºC |
T-Peel Strength Test Temperature at -40 Degree Celsius (ºC) Temperature |
N/A 1.5 pli |
T-Peel Strength Test Temperature at 25 Degree Celsius (ºC) Temperature |
N/A 1.8 pli |
T-Peel Strength Test Temperature at 82 Degree Celsius (ºC) Temperature |
N/A 2.5 pli |
Note for Lap Shear Strength |
N/A
Various cure schedules. Cure schedule 24 hours at 25 ºC. |
Note for Typical Cured Physical Properties |
N/A Tested at 25 ºC unless otherwise indicated |
Typical Uses
Typical Uses |
N/A Repairing of tools, auto parts, electrical and electronic components, furniture, an other applications that require a fast-setting adhesive. |
Packaging
Packaging |
N/A
The DOUBLE/BUBBLE® package is a handy, dual-pouch, one shot, job-size packaging concept. It reduces the waste typically associated with the use of larger quantities of two component adhesives. This unique packaging ensures that DOUBLE/BUBBLE® adhesives are always factory fresh and accurately portioned for optimum adhesive performance. Hardman® Fast-Setting Epoxy is also available in poly bottles, 1-gallon cans, 5-gallon pails and 55-gallon drums. |

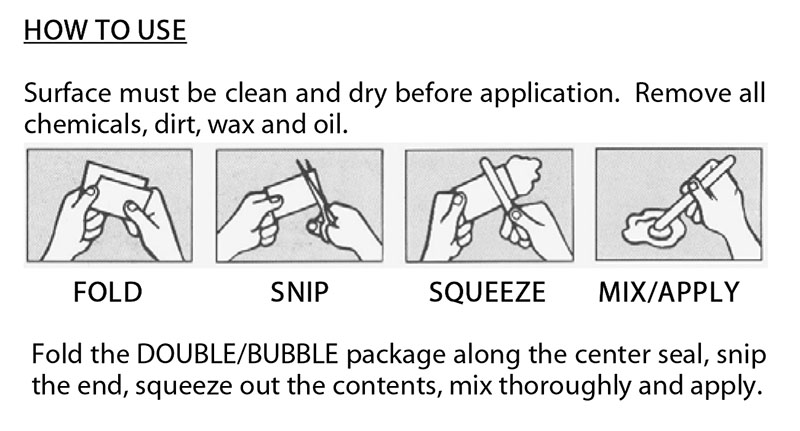

How to Use
How to Use |
N/A
Surface must be clean and dry before application. Remove all chemicals, dirt, wax and oil. Fold the DOUBLE/BUBBLE® package along the center seal, snip the end, squeeze out the contents, mix thoroughly and apply. |
Storage and Handling
Storage and Handling |
N/A
Store DOUBLE/BUBBLE® adhesives at room temperature in a dry environment. Extreme low temperatures may cause crystallization. Extreme high temperatures may degrade the properties. A wide variety of cleaning solutions are available for cured and uncured epoxies and polyurethanes |
Safety
Safety |
N/A
These materials are intended for commercial and industrial use only, and the practices of good housekeeping, safety and cleanliness should be followed before, during and after use. Although the system contains low volatility materials, care should be taken in handling. Use adequate ventilation in the work area. These materials may cause dermatitis in susceptible individuals. Keep off skin and out of eyes. In case of accidental skin contact, wash thoroughly with soap and water. In case of eye contact, flush eyes thoroughly with water and consult a physician immediately. |
Features
Features |
N/A
|
Additional Information
Additional Information |
N/A
Hardman® Fast-Setting Epoxy is an extra fast setting, two - component, room temperature curing epoxy adhesive. The system will cure at as low as -18 ºC (0 ºF). It has a convenient mix ratio, excellent cohesive strength and bonds to most substrates including metal, wood, concrete, ceramics and many plastics. It is recommended for fast patching, fixturing and other repairs requiring quick handling strength. Hardman® Fast-Setting Epoxy is an excellent, general-purpose adhesive. |
Note
Note |
N/A The information herein is currently believed to be accurate. We do not guarantee its accuracy. Purchasers shall not rely on statements herein when purchasing any products. Purchasers should make their own investigations to determine if such products are suitable for a particular use. The products discussed are sold without warranty, express or implied, including a warranty of merchantability and fitness for use. Purchases will be subject to a separate agreement, which will not incorporate this document. |
